With Haibike's 2021 AllMtn 5 you're ready for any challenge on the mountain thanks to the more powerful 4th generation Bosch Performance CX motor and huge 625Wh battery.
With Haibike's 2021 AllMtn 5 you're ready for any challenge on the mountain thanks to the more powerful 4th generation Bosch Performance CX motor and huge 625Wh battery.
Haibike

Haibike 2021 AllMtn 5 625Wh Electric Full Suspension Gloss Black MTB

Size Guide
Earn
in Customer Rewards when you buy this item today
Sign Up
Sign In
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

Haibike 2021 AllMtn 5 625Wh Electric Full Suspension Gloss Black MTB

Season:2021

Brand:Haibike

Code:28741BLKtitanMATGLSy

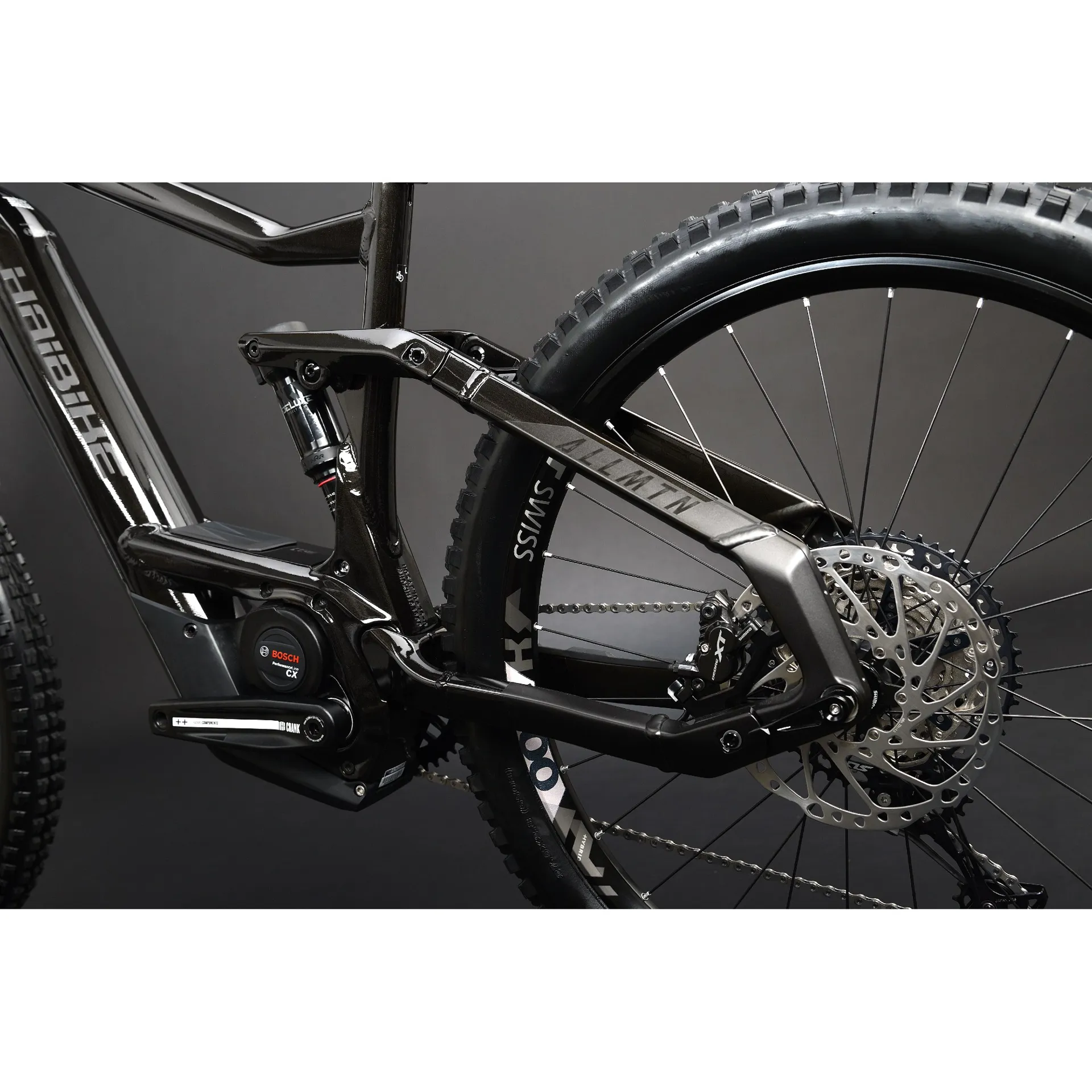

With the 2021 Haibike AllMtn 5 you're ready for any challenge on the mountain! The more powerful 4th generation Bosch Performance CX motor ensures full ePerformance uphill and thanks to the integrated 625Wh battery, you're guaranteed not to run out of breath on long climbs.

The 29" front wheel offers precision and comfortable rolling behaviour, while the 27.5" Plus-size rear wheel in combination with the 85Nm motor provides the perfect traction for steep climbs. With its modern geometry, 160mm RockShox suspension and Shimano Deore XT disc brakes, you can master even the most demanding trails with ease.

Features:
  • Mixed wheel sizes - 27.5" / 29"
  • Drive unit - Bosch Performance CX GEN4, 85Nm, 25km/h
  • Battery - Bosch PowerTube 625Wh
  • Fork - RockShox Lyrik Ultimate RC, Travel: 160mm
Specification:
  • Frame: Haibike, AllMtn, Aluminium 6061
  • Fork: RockShox, Lyrik Ultimate RC, Air/oil, Travel= 160 mm, Aluschaft 1 1/8 - 1 1/2" tapered, 15 x 110mm thru-axle Boost
  • Shock: RockShox, Deluxe Select Plus, Air, Trunnion Mount M8x30
  • Motor / Battery / Display: Bosch, Performance CX GEN4, 250W, 85 Nm, 25 km/h with 625Wh PowerTube battery and Purion display
  • Rear derailleur: Shimano, Deore XT M8100 Shadow Plus 12-speed
  • Cranks: Haibike Components, The Crank ++, Aluminium
  • Cassette: Shimano SLX M7100 10-51T
  • Chain: Shimano SLX M7100
  • Brakes: Shimano Deore XT M8020 4-pot with 203mm rotors
  • Shifter: Shimano Deore SLX M7100 12-speed
  • Headset: Feimin A-Head Tapered Cartridge bearing
  • Handlebar: Haibike Components, TheBar +++ Gravity , 780 mm
  • Grips: Haibike, MTB grips
  • Stem: Haibike Components, TheStem 2, A-head, Bar bore: 31.8 mm
  • Seatpost: Haibike Components, Dropper-Post Remote 31.6, Dropper, Aluminium
  • Saddle: Selle Royal Vivo 1216HRN
  • Wheelset: DT Swiss, H1900
  • Tyres: Maxxis Minion: DHF II 29" x 2.5" / DHR II 27.5" x 2.8"
  • Pedals: Freeridepedal , Aluminium, with Reflector
Technical Information
  • ENGINE
    Bosch, Performance CX GEN4, 250W, 85 Nm, 25 km/h
  • DISPLAY
    Bosch, Purion
  • BATTERY
    Bosch, PowerTube, 625 Wh
  • FRAME FAMILY
    Haibike, AllMtn, Aluminium 6061
  • FORK
    RockShox, Lyrik Ultimate RC, Air/oil, Travel = 160 mm, Aluschaft 1 1/8 - 1 1/2" tapered, 15 x 110mm thru-axle Boost
  • DAMPER
    RockShox, Deluxe Select Plus, Air, Trunnion Mount M8x30
  • CRANK ARM
    Haibike Components, Aluminium
  • BRAKE (FRONT)
    Shimano, Deore XT M8020, 203 mm, 4-piston disc brake
  • BRAKE (REAR)
    Shimano, Deore XT M8020, 203 mm, 4-piston disc brake
  • TUBE
    Presta valve
  • CLAMPING RING
    Internal hexagon, 34.9 mm
  • REAR DERAILLEUR
    Shimano, Deore XT M8100 Shadow Plus
  • SHIFT LEVER
    Shimano, Deore SLX M7100, 12 Speed
  • BOTTOM BRACKET
    Integrated in the motor
  • SPROCKET
    Shimano, SLX M7100, 10 - 51 teeth
  • CHAIN
    Shimano, SLX M7100
  • CHAINRING
    Haibike Components, Aluminium, 38 teeth
  • CHAIN GUIDE
    Nylon dircetmount
  • BRAKE LEVER
    Shimano, Deore XT M8000, Aluminium
  • BRAKE DISC (FRONT)
    Shimano, RT 64LEC
  • BRAKE DISC (REAR)
    Shimano, RT EM600L
  • TYRE
    Maxxis, Minion DHF II, 63-622, 29" x 2.5"
  • WHEEL SET
    DT Swiss, H1900
  • HANDLEBAR
    Haibike Components, Gravity , 780 mm
  • GRIPS
    Haibike, MTB grips
  • STEM
    Haibike Components, A-head, Bar bore: 31.8 mm
  • HEADSET
    Feimin, A-Head Tapered, Aluminium, Cartridge
  • SADDLE
    Selle Royal Vivo 1216HRN
  • SEAT POST
    Haibike Components, Dropper-Post Remote 31.6, Dropper, Aluminium
  • PEDALS
    Freeridepedal , Aluminium, with Reflector,
  • PERMITTED TOTAL WEIGHT
    120.0 kg
  • TYRE (REAR)
    Maxxis, Minion DHR II, 71-584, 27.5" x 2.8"
Sizing Information
