For riders who need a boost, the Marin Alpine Trail E is an electric full-suspension mountain bike with a 504Wh battery, Shimano EM600 motor and Cues drivetrain.
For riders who need a boost, the Marin Alpine Trail E is an electric full-suspension mountain bike with a 504Wh battery, Shimano EM600 motor and Cues drivetrain.
Marin

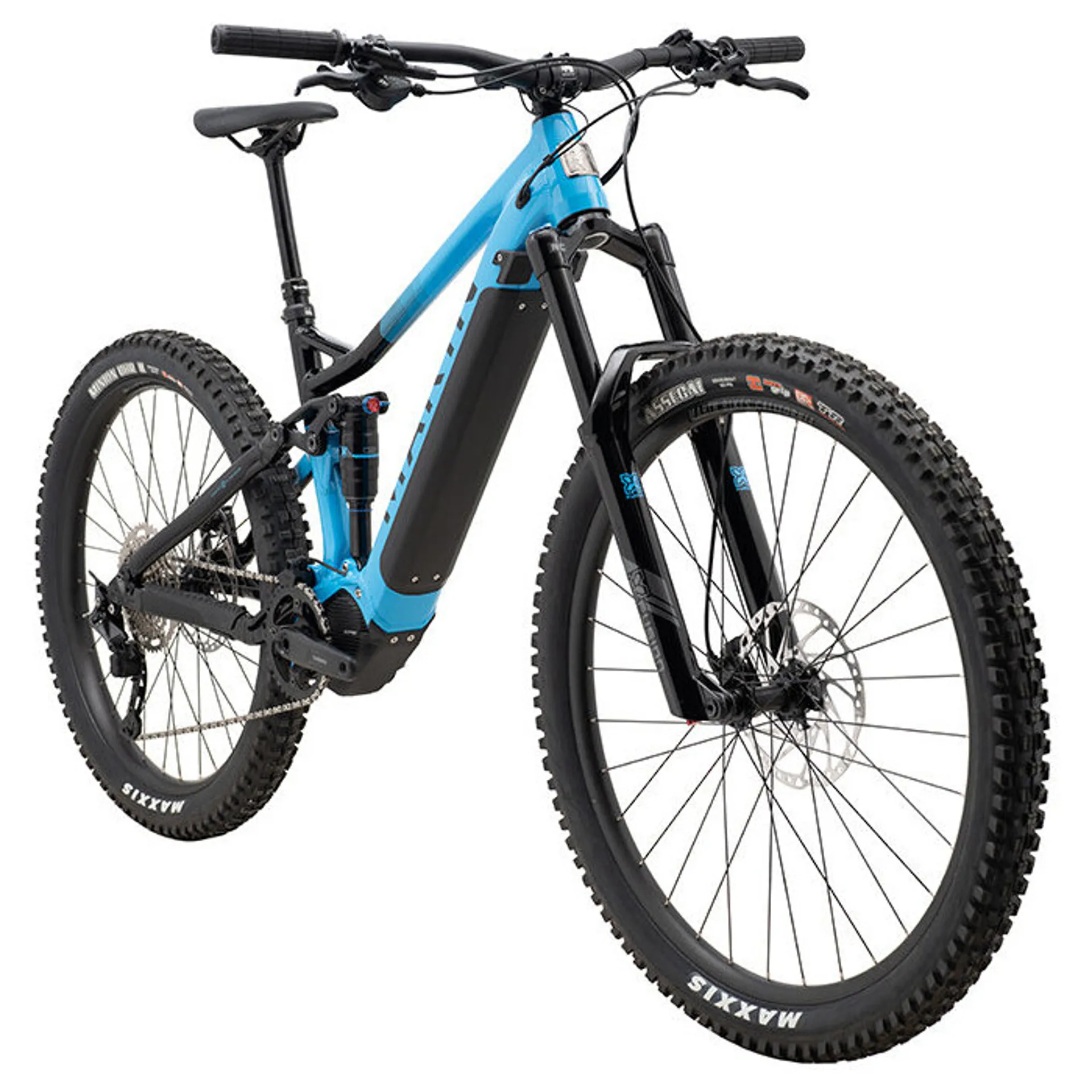

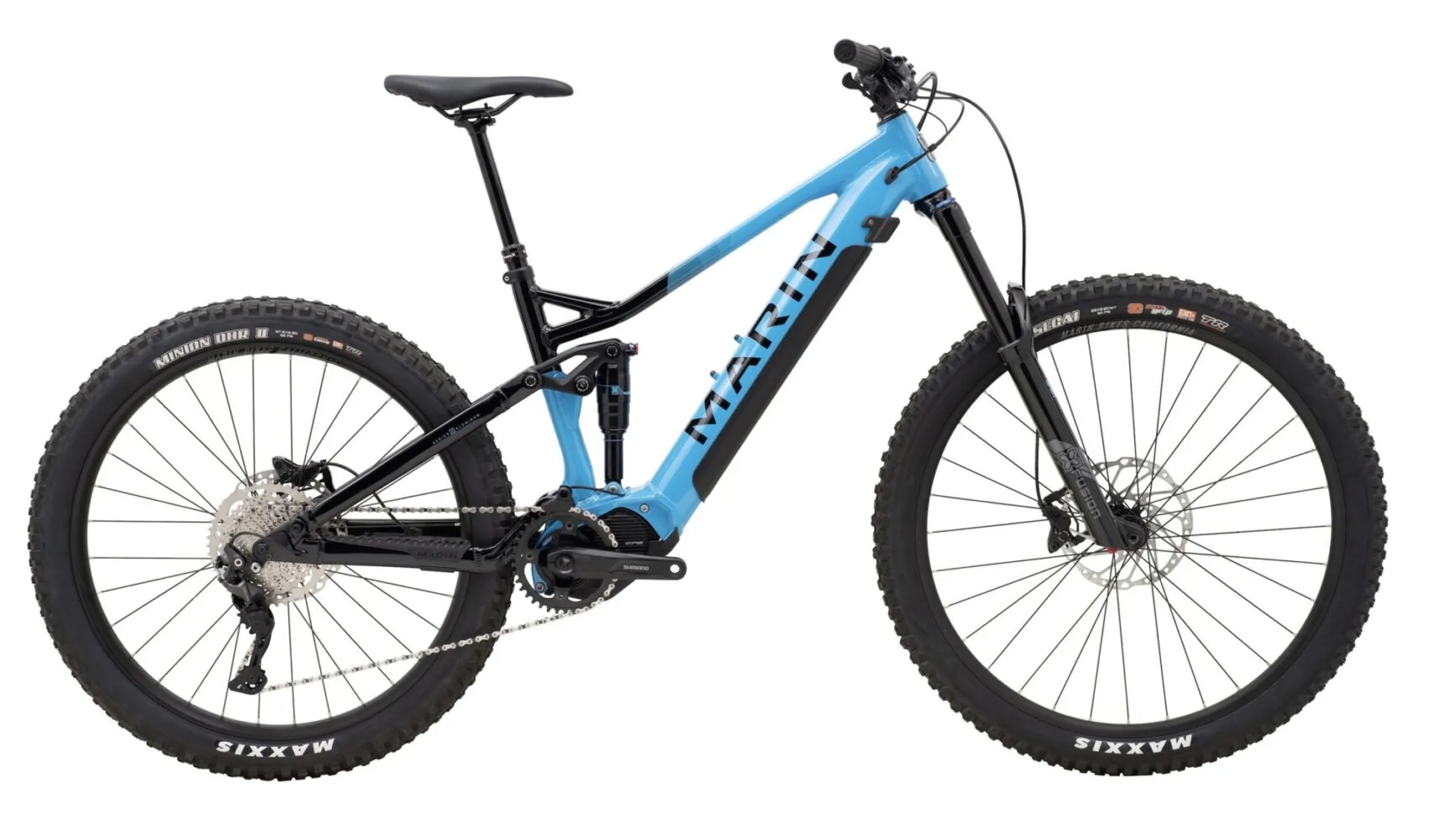

Marin 2024 Alpine Trail E Full Suspension Electric Mountain Bike

Size Guide
Earn
in Customer Rewards when you buy this item today
Sign Up
Sign In
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

Marin 2024 Alpine Trail E Full Suspension Electric Mountain Bike

Season:2024

Brand:Marin

Code:7365490GLSBLU

The new versions of the highly-popular Alpine Trail E range from Marin offer the latest Shimano motor technology, bigger batteries and updated specs to give you the best performance possible.

The Marin Alpine Trail E1 sits squarely in the middle of the Alpine Trail family, packing performance and value in equal measure. Go E1 and you’ll get an upgrade to a 630Wh battery, X-Fusion Trace 36RC / RockShox Super Deluxe Coil R suspension and a long-lasting, tough and reliable Shimano 11-speed Deore drivetrain.

Key features:
  • Shimano BT-8035L Internal 504Wh battery
  • X-Fusion Trace 36RC / 02 Pro RXC suspension
  • Shimano Cues 10-speed drivetrain with 11-46t cassette

Specification:
  • Frame: Series 4 Alloy, 150mm MultiTrac Suspension, Integrated Battery/Charging Port, 148mm Rear Thru-Axle, Built-in Rear Speed Sensor
  • Motor: Shimano Steps EP6 Drive Unit, 250W, 85Nm
  • Battery: BT-8035L, Internal 504Wh
  • Display: Shimano SC-E600
  • Control: SW-EN600L Left Hand Switch for Assist Mode Change
  • Forks: X-Fusion Trace 36 RC, 160mm Travel, 29", 110x15mm Bolt-On Axle, 44mm Offset
  • Shock: X-Fusion 02 PRO RXC, Compression and Rebound Adjustment, Custom Tune, 205x65 Trunnion Upper Mount, 25xM8 Lower Mount
  • Front Rim: Marin Aluminum Double Wall, 29" Diameter, 32mm Inner Rim Width, Pinned Joint, Disc Specific, Tubeless Compatible
  • Front Hub: Shimano FH-TC500, 110x15mm, Centerlock, 32H
  • Rear Rim: Marin Aluminum Double Wall, 27.5" Diameter, 38mm Inner Rim Width, Pinned Joint, Disc Specific, Tubeless Compatible
  • Rear Hub: Shimano HB-TC500, 148x12mm, Centerlock, Standard Freehub Body
  • Tyres: Front: Vee Tire Co. Attack HPL, 29x2.5", Top 40 Tubeless Compatible Rear: Vee Tire Co. Crown Gem, 27.5x2.8”, TACKEE Compound, Tubeless Compatible
  • Rear Derailleur: Shimano CUES 10-Speed
  • Shifter: Shimano Deore, 10-Speed, I-Spec EV
  • Cranks: Shimano EM600, 160mm Length, 38t Chainring
  • Chain: KMC X-10E, Silver
  • Cassette: Shimano Deore 10-speed 11-46T
  • Brakes: TRP Slate EVO 4-Piston Hydraulic, 203mm Rotors, 2.3mm Thick
  • Handlebar: Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 28mm Rise, 5º Up, 9º Back
  • Stem: Marin 3D Forged Alloy, 35mm
  • Grips: Marin Grizzly Lock On
  • Headset: FSA No 57E, Sealed Cartridge Bearings, 1 1/8" x 1 1/2”
  • Seatpost: TranzX, YSP18JL, 1x Remote, Size S 150mm Travel, All Other Sizes 170mm Travel, 30.9mm
  • Saddle: Marin eMTB Saddle
  • Pedals: Marin MTB Plastic

Specifications, pricing, and availability are subject to change without notice.
