The all-new Orro Terra E is an electric gravel bike with a carbon fibre frame, FSA HM1 motor with 250Wh battery, Sram Apex 1x drivetrain and powerful hydraulic brakes.
The all-new Orro Terra E is an electric gravel bike with a carbon fibre frame, FSA HM1 motor with 250Wh battery, Sram Apex 1x drivetrain and powerful hydraulic brakes.
Orro Bikes

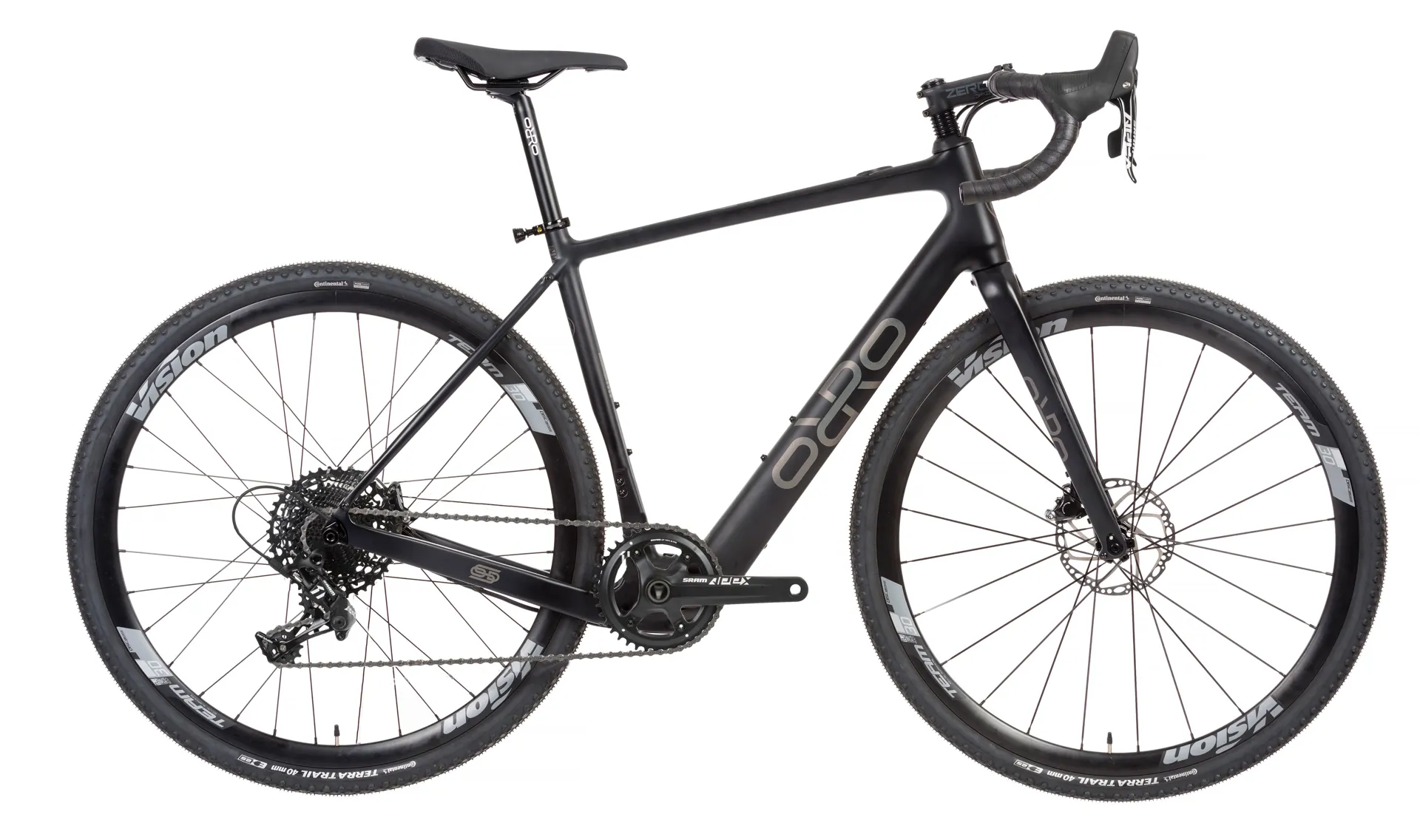

Orro Terra E Apex 1x Matt Black Carbon Electric Gravel Bike

£3,999.99
Earn
in Customer Rewards when you buy this item today
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

Orro Terra E Apex 1x Matt Black Carbon Electric Gravel Bike

Season:2023

Brand:Orro Bikes

Code:ORRTE2AX1HM1DSTBLK

After years of product conceptualisation and design development, Orro welcome their first electric bike into the terra family. Early in the design process the orro bike team homed in on gravel riding as the best area for electric development. The aim was to enable everyday cyclists with the ability to take on more mileage and make it easier to tackle tough off-road climbs, such as those in the native south downs testing ground. Terra e marks a considered entry from orro into the empowering world of lightweight electrically assisted bikes.

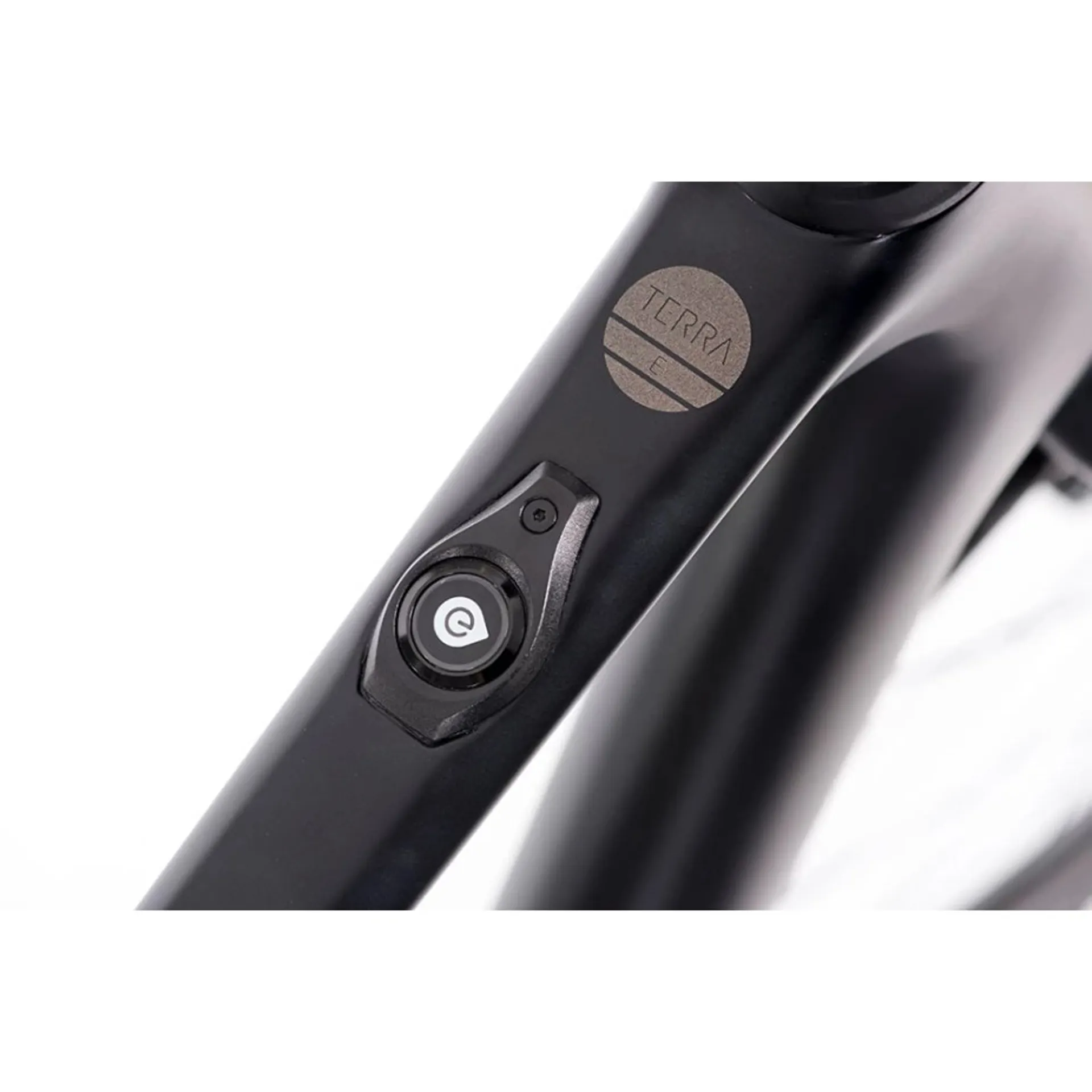

Terra e has an integrated design and user experience. Each of the five colour coded power modes are easily selected while riding using a backlit button on the top tube. The clean lines of this lightweight carbon fibre gravel bike belie its electrified nature. A svelte down tube hides the 250-wh battery of the fsa hm1 system. An optional range extender cell can be carried in a bottle cage, doubling the capacity. A mobile app wirelessly interacts with the system, adding the ability for riders to review battery performance and customise the settings.

In developing a hub motor driven e-bike orro have been able to keep the horizontal distance between the pedals, known as 'q factor', the same as typical non-electric bikes. This gives terra e a riding stance and pedalling characteristics that will feel familiar to all cyclists. The frame is designed from the ground up for the hm1 system motor and battery units. These components can deliver a maximum 42nm of torque and a range of around 50 miles. integrated torque and speed sensors provide natural feeling assistance across each power setting.

Specification:

  • Frame: ORRO Terra E
  • Fork: ORRO Terra E
  • Motor: FSA HM1
  • Battery: FSA System HM1 36V 252Wh
  • Wheelset: FSA HM1 System Team 30 AGX Hub Motor
  • Tyres: Continental Terra Trail 40c
  • Shifters: Sram Apex 1x
  • Rear Derailleur: Sram Apex 1
  • Chainset: Sram Apex 40T
  • Cassette: Sram Apex 11-42T
  • Chain: Sram 11 Speed
  • Bottom Bracket: BB86
  • Brake Calipers: Sram Apex Hydraulic
  • Rotor: Centerlock Paceline 160mm
  • Seatpost: ORRO Alloy Setback
  • Saddle: Orro Bostal Plus Saddle
  • Handlebar: FSA Adventure Compact
  • Stem: FSA Omega ST

    Please note that this specification is subject to revisions in relation to availablity. Images intended as a representation of colour & may not always show exact specification.

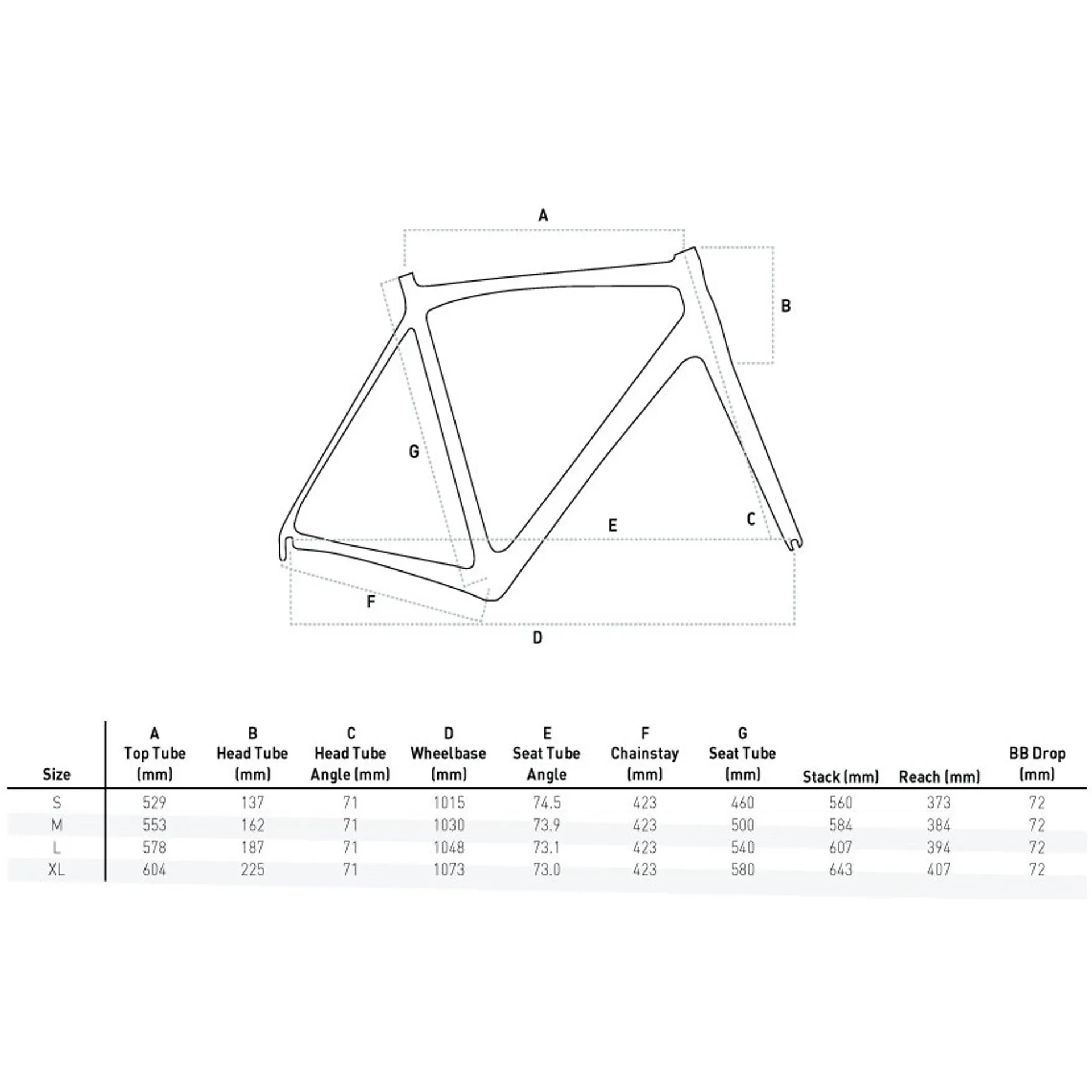

Sizing Information
