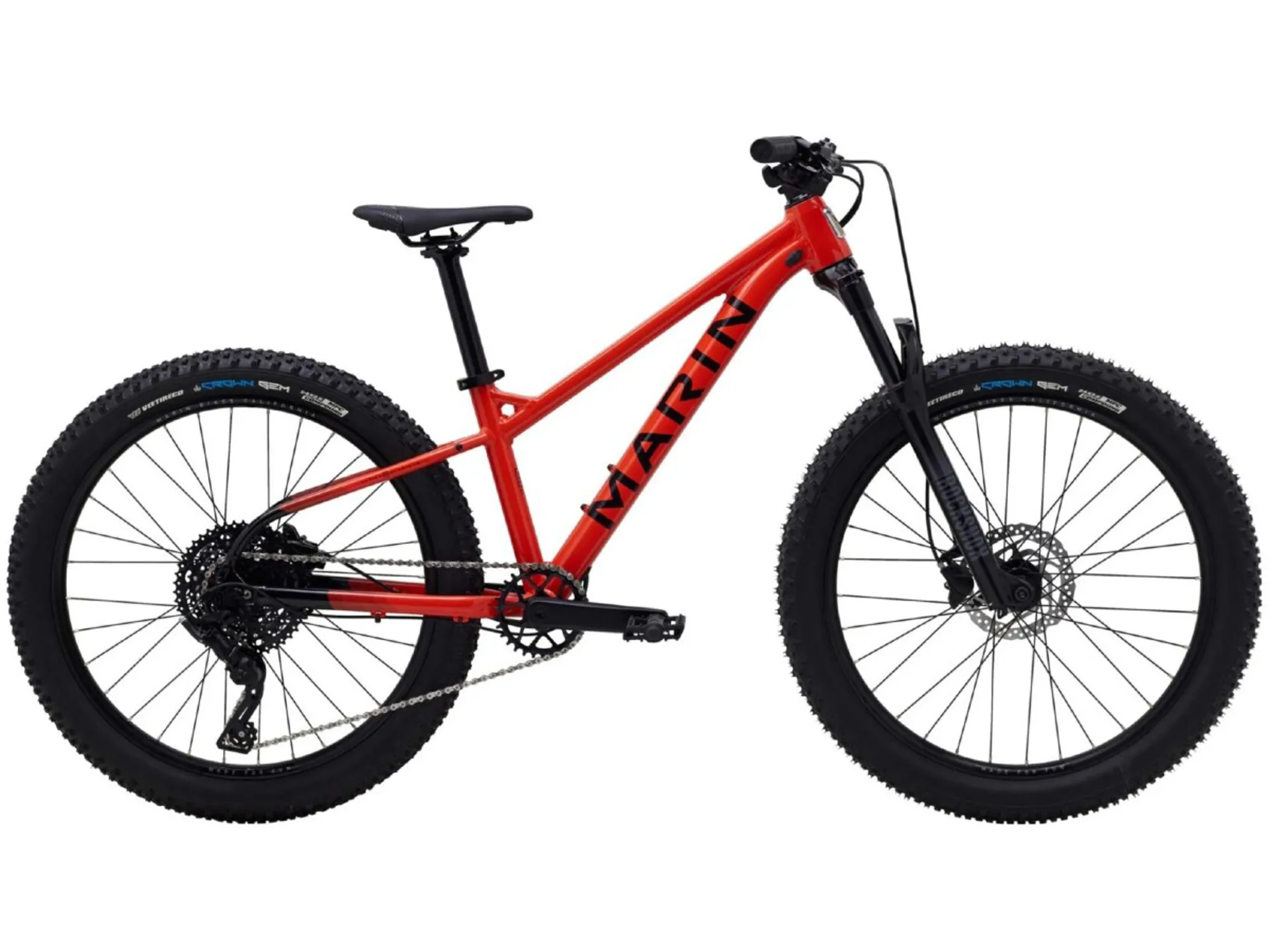

Marin's 2021 San Quentin 24” features a Series 2 aluminum frame, with a tapered headtube, 3D forged dropouts, IS brake mounts, semi-internal cable routing and 135mm open dropouts.
Taking cues from the Alcatraz, as well as the full-size San Quentin lineup, the San Quentin 24” proved all the benefits of DJ style, with massive standover, slick frame tubes, and a hot paint job.
A slack headtube angle paired with a steep seat tube angle creates a ride that will fly uphill, yet descend like it’s on rails. The balanced rider position is puts the rider weight between the wheels for steady climbing and handling on flats, while the slack front end helps to add higher speed stability through turns and rough patches.
Modern 1x drivetrains, just like the larger San Quentins, give the rider the benefits of shifting simplicity and chain retention.
Specification:
- Frame: Series 2 6061 Aluminum, 24” Wheels, Disc Specific, 135mm Dropouts
- Forks: RockShox Judy Silver TK, 100mm Travel, Solo Air, 110x15mm Maxle Stealth
- Wheels: Marin Double Wall Alloy Rims on Forged Aluminum, 32H, Disc Specific hubs
- Tyres: Vee Tire Crown Gem, 24”x2.6”, Wire Bead
- Rear Derailleur: MicroSHIFT Advent 9-Speed
- Shifter: MicroSHIFT Advent 9-Speed
- Chainset: Forged Alloy, Narrow Wide 30T, 152mm
- Bottom Bracket: Sealed Cartridge Bearings, Square Taper
- Chain: KMC X9
- Cassette: MicroSHIFT 9-Speed, 11-46T
- Brakes: Shimano BR-MT201 Hydraulic, 160mm Rotors
- Handlebars: Marin Riser, 31.8 clamp, 30mm Rise, 590mm Width
- Stem: Marin Alloy, 35mm
- Grips: Marin MTB
- Seatpost: Marin Alloy, 30.9mm
- Saddle: Marin Kids MTB
- Pedals: Kids Specific Nylon Pedal
