Lapierre 2021 Overvolt AM 8.6 Electric Full Suspension Mountain Bike

Season:2021

Brand:Lapierre

Code:28926BLK

The Overvolt AM 8.6 can cross mountains and redefine your limits. With 150 or 160 mm of clearance, you can tackle the most technical paths thanks to an electrical mountain bike developed with a centralised and lower centre of gravity. The result is a dream to ride and boundless pleasure.

Features:
  • Lapierre's Overvolt AM 8.6 frame in Supreme 5 aluminium has 160mm of travel, 29”/27.5” "mullet" wheel size and the perfectly integrated fourth-generation Bosch drive unit.
  • Updated frame with a new rear triangle integrating the speed sensor and a new UDH (universal derailleur hanger).
  • To optimise the suspension efficiency and output of the bike, Lapierre opted for the Fox Float Factory DPX2 shock for its dual piston system and multiple compression adjustment points.
  • The rigidity and adjustment accuracy of the Fox 38 Float Factory 29” fork creates a coherent, efficient assembly.
  • Shimano XT brakes with their four-piston calipers and 203 mm discs provide power with an exceptional touch and ideal progressiveness to modulate your braking.

Specification:
  • Frame: Overvolt 160mm Integrated Bosch Supreme 5 Alloy Boost + New Rear Triangle (Udh Dropout + Integrated Sensor)

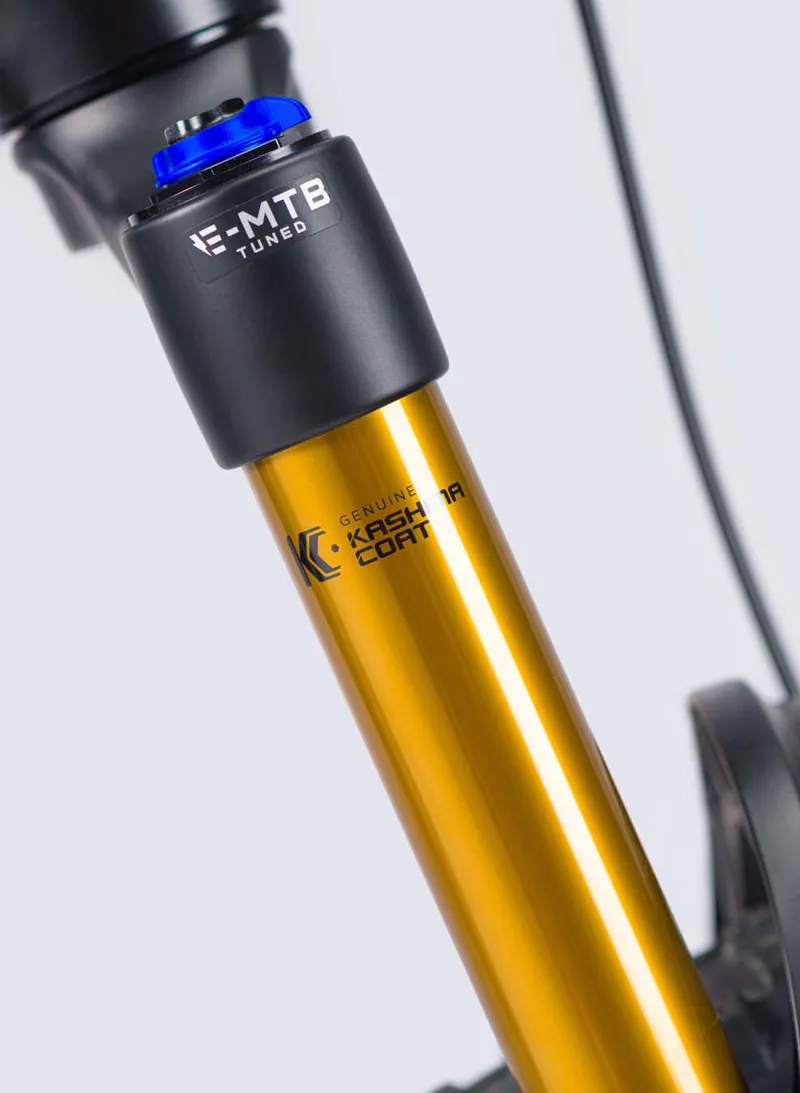

  • Fork: Fox 38 Float Factory 29″ Boost 15x110 160MM 44MM Offset / 3 Pos Lever

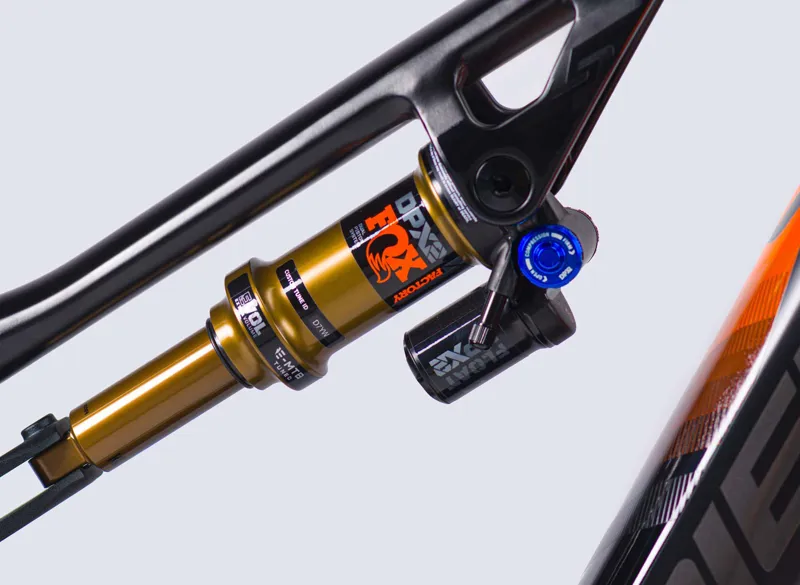

  • Shock: Fox DPX2 Factory Kashima Trunnion

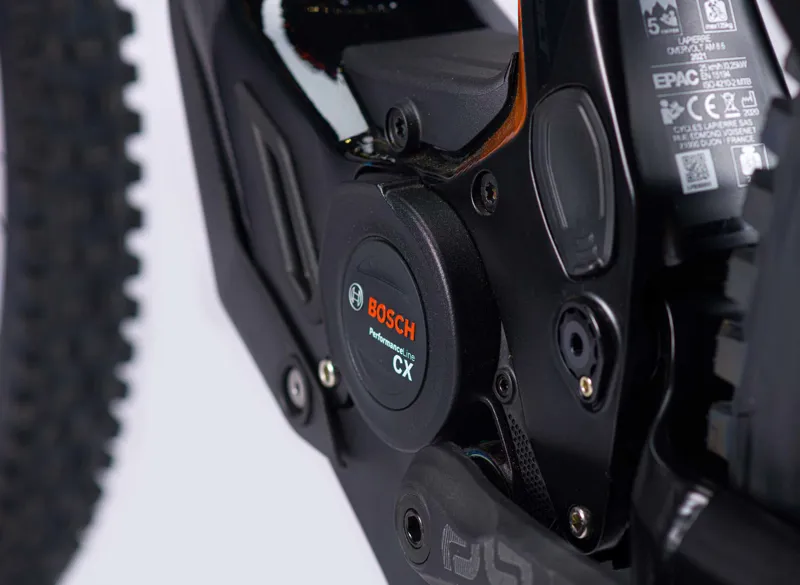

  • Motor / Battery / Display: Bosch Performance CX Gen4, 625Wh battery
  • Rear derailleur: Shimano Deore XT 12spd
  • Cassette: Shimano SLX 10–51T
  • Chain: Shimano Deore 12s

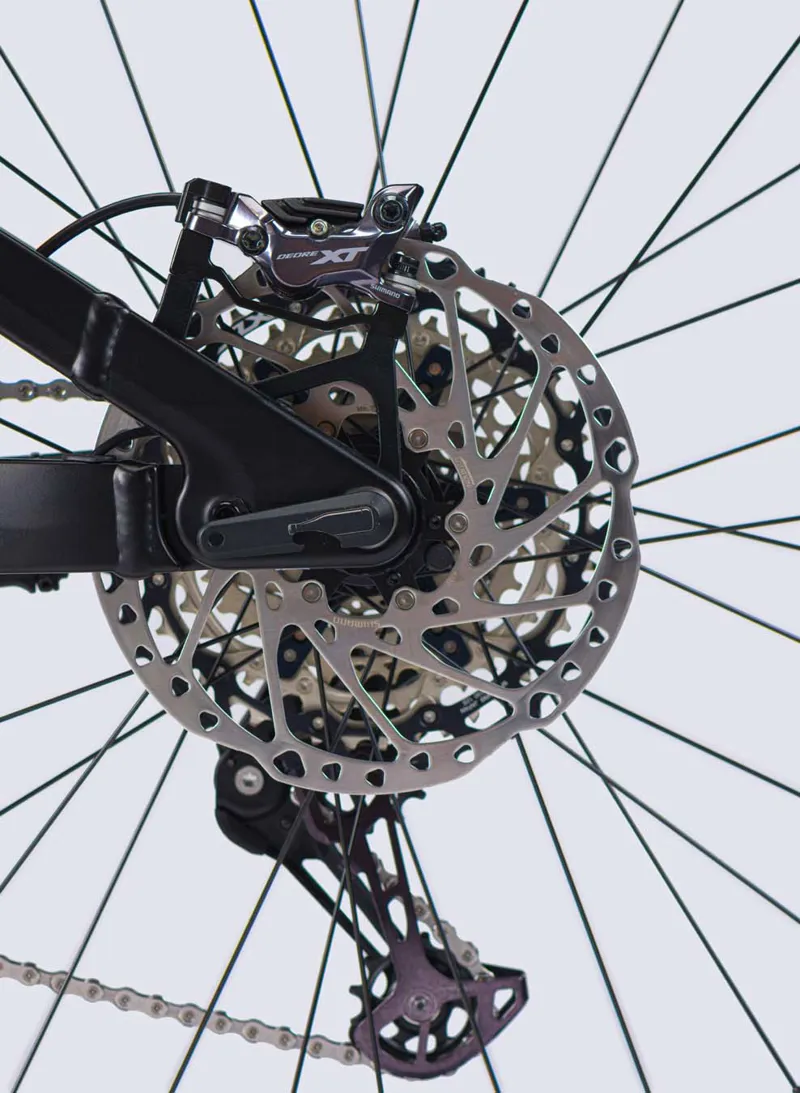

  • Brakes: Shimano XT 4-pot with SM-RT64 203mm rotors
  • Shifter: Shimano SLX 12s
  • Headset: FSA NO.55R/57E, Anod black 1-1/8"-1.5"

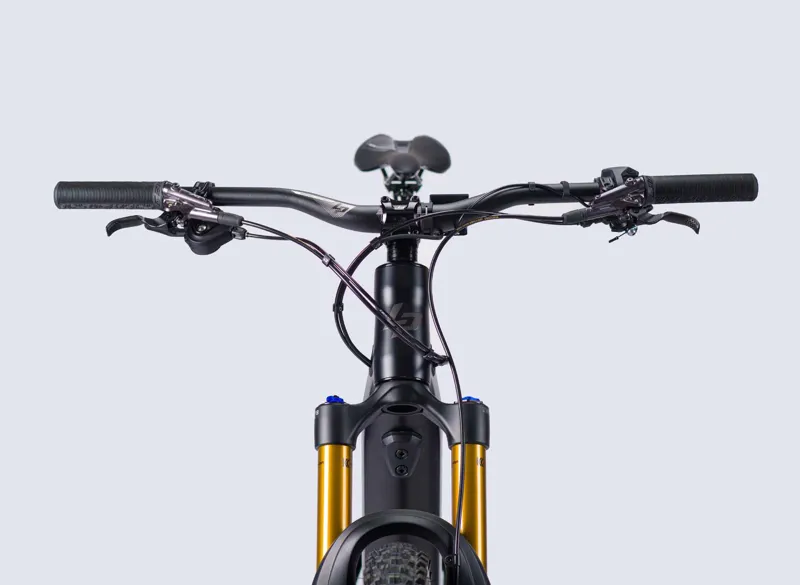

  • Handlebar: Lapierre Alloy 6061DB Ø: 31.8mm W: 760mm R: 15mm (S/M) W: 780mm R: 30mm (L/XL)
  • Grips: Lapierre Grips S/M: Small Diameter L/XL: Large Diameter
  • Stem: Lapierre Alloy Ø: 31.8mm L: 50mm (S, M, L, XL)
  • Seatpost: JD Dropper “Rad Travel Adjust “ 125(S), 150(M), 170 (L, XL)
  • Saddle: Lapierre by Velo
  • Front hub: Shimano MT400 Boost Thru Axle 32H
  • Rear hub: Shimano MT400 Boost Thru Axle
  • Rims: Lapierre eAM+ Alloy 32H Front: 622x33c J-bend / Rear: 584x35c J-bend
  • Tyres: Maxxis FT:29x2.5 Assegai Exo+ 3C Max terra / RR: 27.5x2.8 Minion DHR II Exo+ 3C Max terra Tready
  • Pedals: VP VPE-527
Technical Information
  • Frame
    Overvolt 160mm Integrated Bosch Carbone Boost
  • Fork
    Fox 38 Float Factory 29″ Boost 15x110 160MM 44MM Offset / 3 Pos Lever
  • Brake Lever
    Shimano XT 4 pistons
  • Brake Type
    Disc Brake
  • Brakes Front
    SRAM Centerline 220mm/ 200mm + Bosch Magnet, Shimano FT:SMRT64 203mm RR: RTEM600 With Magnet 203mm
  • Handlebar
    Lapierre Alloy 6061DB Ø: 31.8mm W: 760mm R: 15mm (S/M) W: 780mm R: 30mm (L/XL)
  • Headset
    FSA NO.55R/57E, Anod black 1-1/8"-1.5"
  • Model Year
    2021
  • Pedals
    VP VPE-527
  • Stem
    Lapierre Alloy Ø: 31.8mm L: 50mm (S, M, L, XL)
  • Battery Watts per Hour
    625Wh
  • E-Bike
    Yes
  • Motor
    Bosch Performance CX Gen4
  • Grips
    Lapierre Grips S/M: Small Diameter L/XL: Large Diameter
  • Saddle
    Lapierre by Velo
  • Seat Post
    JD Dropper “Rad Travel Adjust “ 125(S), 150(M), 170 (L, XL)
  • Rim
    Lapierre eAM+ Alloy 32H Front: 622x33c J-bend / Rear: 584x35c J-bend
  • Tyres
    Maxxis FT:29x2.5 Assegai Exo+ 3C Maxterra / RR: 27.5x2.8 Minion DHR II Exo+ 3C Maxterra Tready
  • Wheel size
    27.5 inch
  • Chain
    Shimano Deore 12s
  • Front Wheel Hub
    Shimano MT400 Boost Thru Axle 32H
  • Rear Wheel Hub
    Shimano MT400 Boost Thru Axle
  • Sprocket
    Shimano SLX 10–51T
  • Shift Lever
    Shimano SLX 12s
