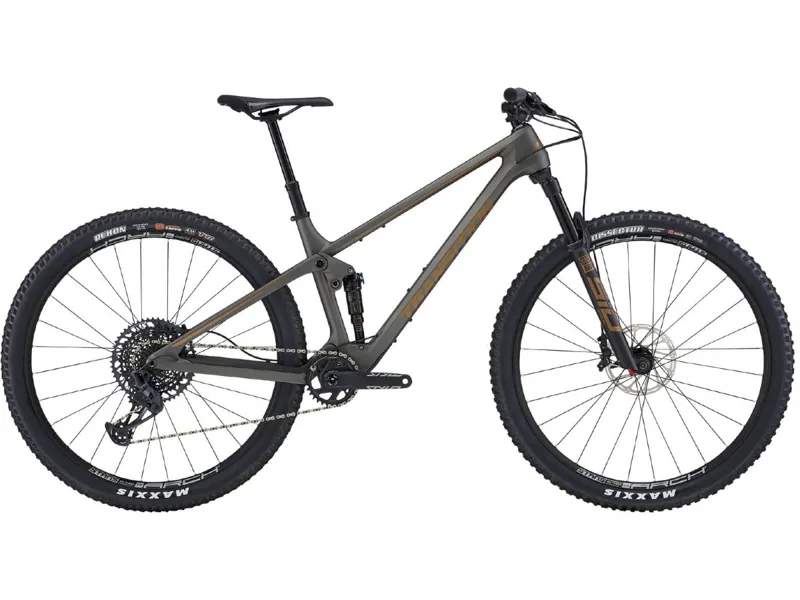

This lightweight successor to the Smuggler is a lightning-fast fun machine with 120mm travel front and rear, designed to fly up and down the hills. It's got a carbon frame with a flex stay system that utilises a carefully tuned carbon layup to remove pivot axles and bearings, saving weight without compromising frame durability. It's over 1kg lighter than the carbon Smuggler, and boasts a whole load of new features.
The Spur provides a sense of connection to the bike that makes it feel like an extension of your body. Fast and efficient with an anti-gravity feel and laser-pointer precision that begs you to climb more, go farther, and descend anything you may encounter along the way. You'll instantly appreciate the free speed you're awarded while accelerating where you're usually accustomed to pedaling. Don't judge a book by its cover though - with all these lightweight and uphill oriented character traits the Spur requires no adjustment to descend like you're used to, you might actually go faster!
Transition want to make it as easy as possible to experience great rear suspension performance. The GiddyUp suspension system is designed to behave intuitively across a broad range of setup, because sometimes you just want to grab your bike and GiddyUp, without checking your setup. When you do, it will always feel good.
With nearly 30% of progression and a consistent linear rate of change, the Spur has an excellent balance of support and small bump sensitivity. Anti-squat is tuned to enhance pedaling performance and acceleration but doesn't get in the way of the suspension working when it's needed.
The GiddyUp suspension, featuring a one-piece flex stay rear triangle, is tuned to work correctly with inline style rear shocks and designed to provide a balanced feel with 120mm travel forks. Riders are able to add or remove volume spacers in the rear shock to suit their individual riding style and there is plenty of bottom out control for when things get rowdy. The Spur has 120mm of rear wheel travel when used with the supplied 190mm x 45mm stroke shock. It is also possible to install a shorter, 190mm x 37.5mm stroke shock, to reduce the rear wheel travel to 100mm if you are after a shorter travel experience.
A wide usable sag range of 25 - 35% allows the rider to tune the feel of the bike; from firm and snappy, to more supple and active. Wherever you end up, you can focus on the trail without remotes, levers or knobs. Just grab your bike and GiddyUp.
Features:
-
Full carbon frame made from premium Japanese Toray fiber with a tailored blend of 24T, 30T and 40T materials to create the right balance of frame stiffness, strength and impact toughness. Transition's unique latex-coated EPS moulding process allows for sharper frame lines and tighter edge radius control, with maximum strength to weight ratio and less wasted material.
-
Lifetime warranty on the frame for the original owner, and a great crash-replacement program that allows you to ride with confidence.
-
Collet main pivot technology improves rear-end stiffness and keeps pivot hardware tight.
-
Fully integrated, flush-mounted rubber frame protection on the chainstay and downtube.
-
Enduro MAX bearing used on all pivots.
-
Gear accessory mount on the underside of the toptube and bottle-cage mount on the downtube for riders who love going bagless.
-
Massive seatpost insertion to accomodate big-travel dropper posts.
-
Flex stay system utilises a carefully tuned carbon layup that removes pivot axles and bearings to save weight without compromising frame durability.
-
Standard 73mm threaded BB shell - no creaky press-fit bottom bracket noises!
Specification:
-
Frame: Spur Carbon 120mm
-
Rear Shock: RockShox SIDLuxe Select+
-
Forks: RockShox SID Select+
-
Headset: FSA No.57E
-
Stem: RaceFace Aeffect R (50mm)
-
Handlebars: ANVL Mandrel Alloy (800mm x 20mm)
-
Grips: Sensus Lite
-
Saddle: ANVL Forge Cromo
-
Seatpost: OneUp Dropper Post
-
Brakes: SRAM G2 RS
-
Rotors: SRAM Centerline (180/160mm)
-
Shifter: SRAM GX Eagle
-
Derailleur: SRAM GX Eagle
-
Cassette: SRAM XG 1275 (10-52t)
-
Chain: SRAM GX Eagle
-
Chainset: SRAM Stylo 7K
-
Wheels: Stans Arch S1 Team 28H
-
Front Tyre: Maxxis Dissector 3C EXO (29x2.4)
-
Rear Tyre: Maxxis Rekon 3C EXO (29x2.4)
-
Included: Tubeless Valves & Stans Sealant (6oz)
-
Weight: 26.9 lbs / 12.2 kg (Size MD)
